Modular pods and EV charging, built in Chennai.
BAPSULE is the platform from Blacxird Industries Private Limited: factory-built pods and EV charging docks, from 3.3 kW AC outlets to 360 kW DC fast chargers, running the open OCPP 1.6J protocol.
- Pods built in the factory and delivered ready to trade
- AC and DC charging docks, 3.3–360 kW
- Open OCPP 1.6J protocol, with the BAPSULE App
- Guarantee & warranty on every BAPSULE pod
Leadership
Leads the company's strategy and day-to-day operations.
Leads brand, marketing and customer outreach.

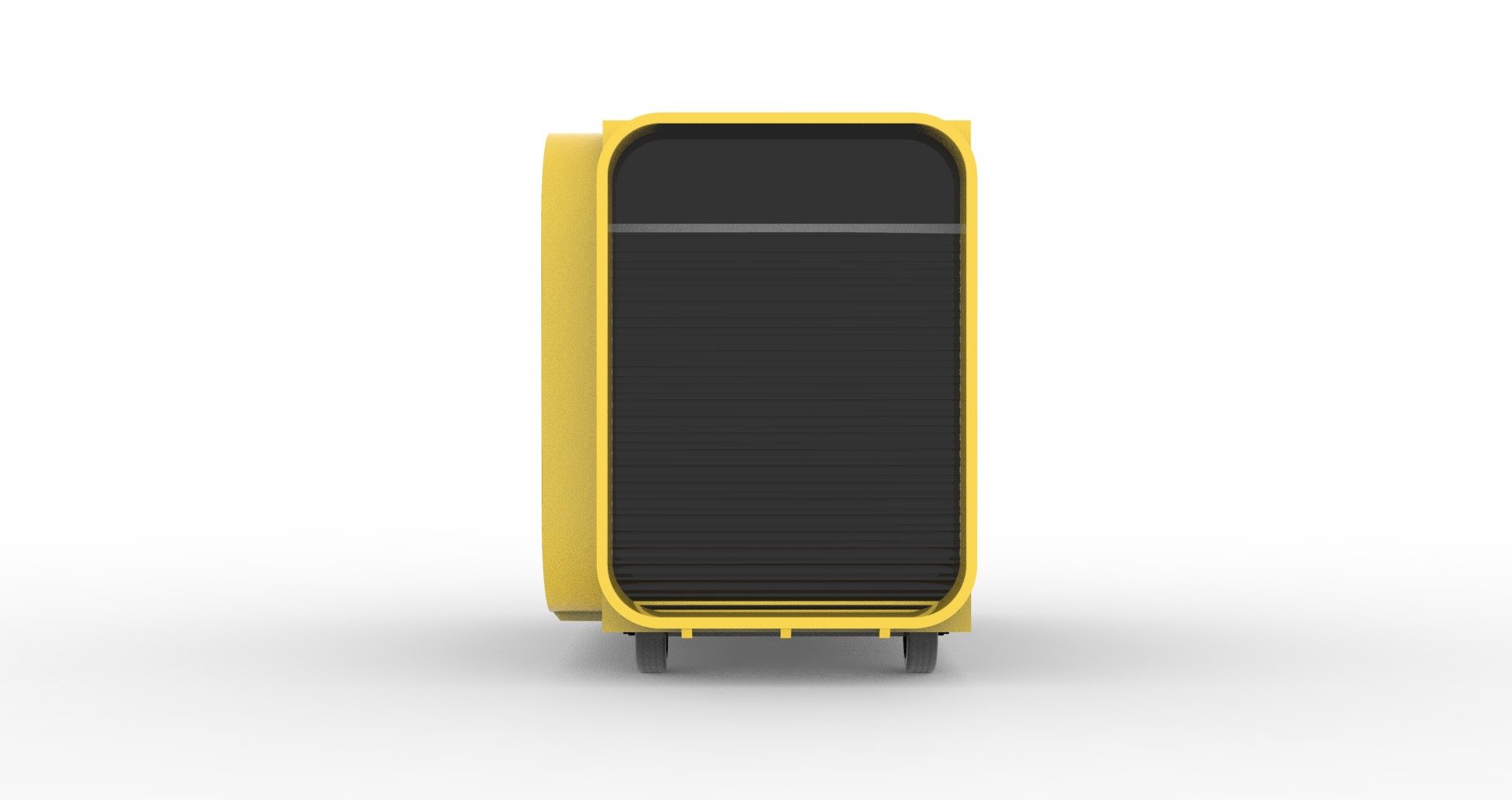

Factory-built. Relocatable. Open in days.

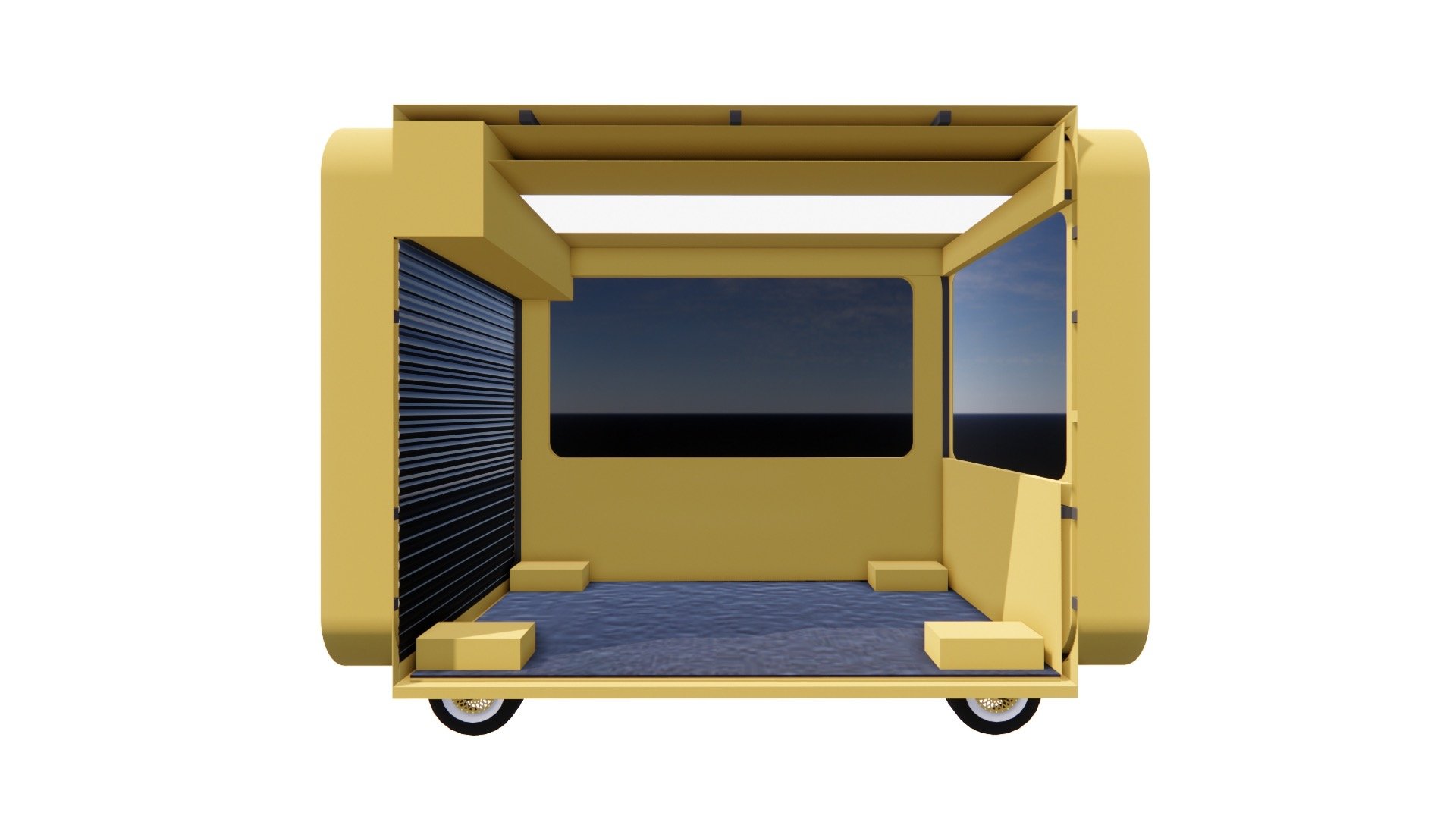

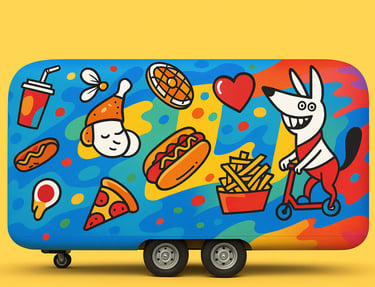

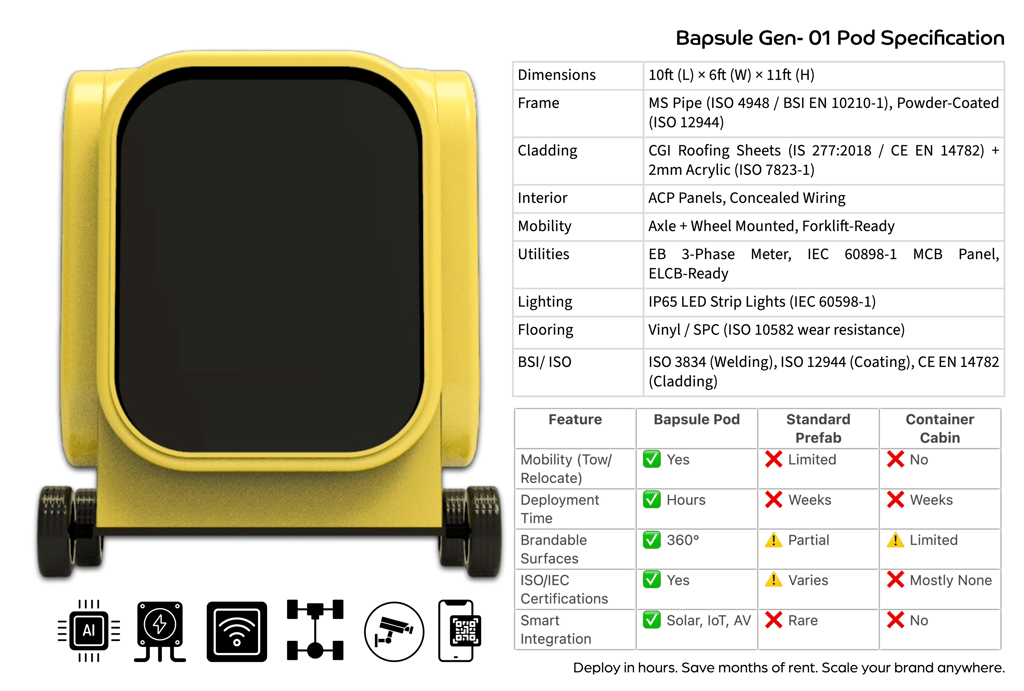

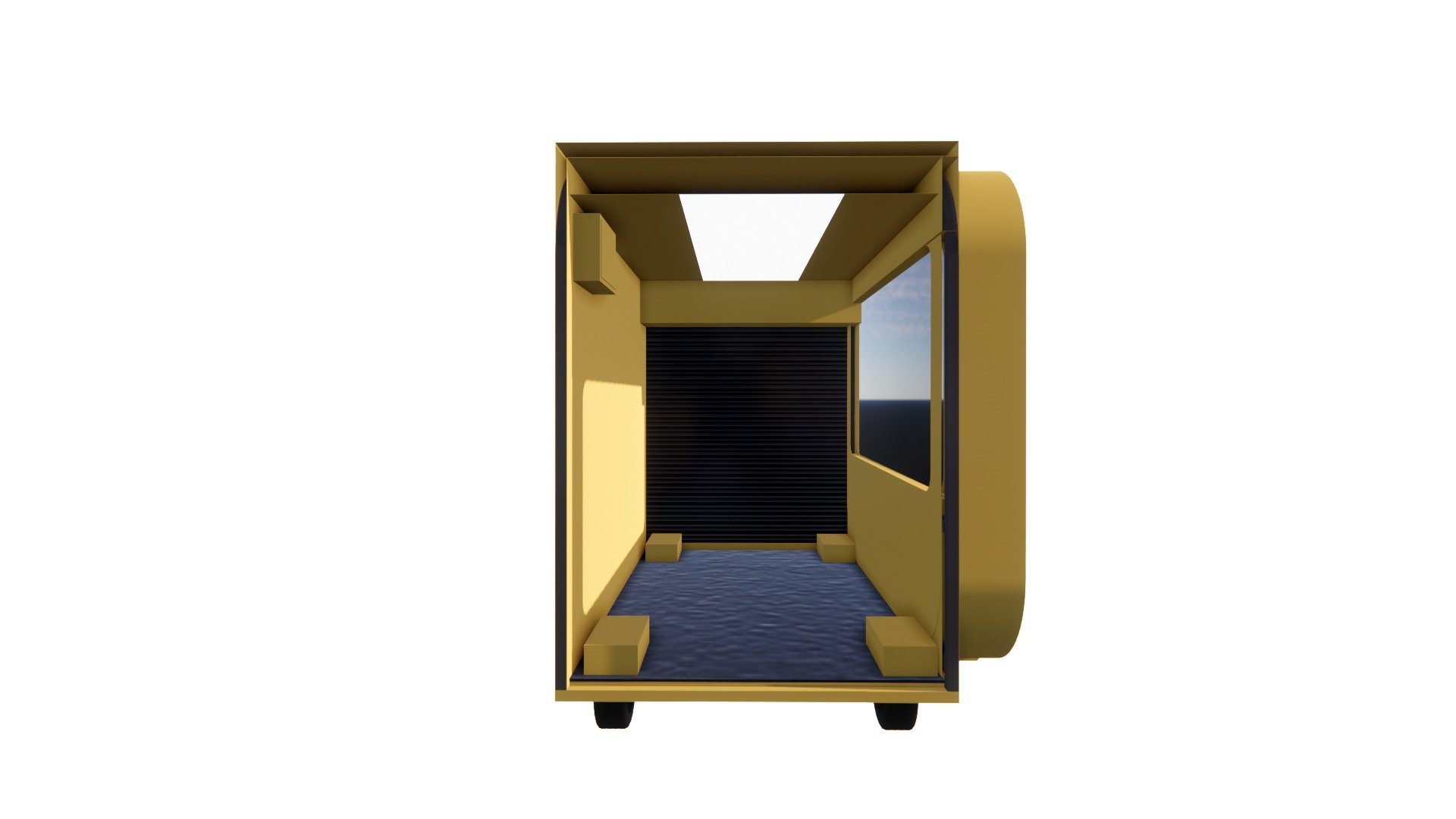

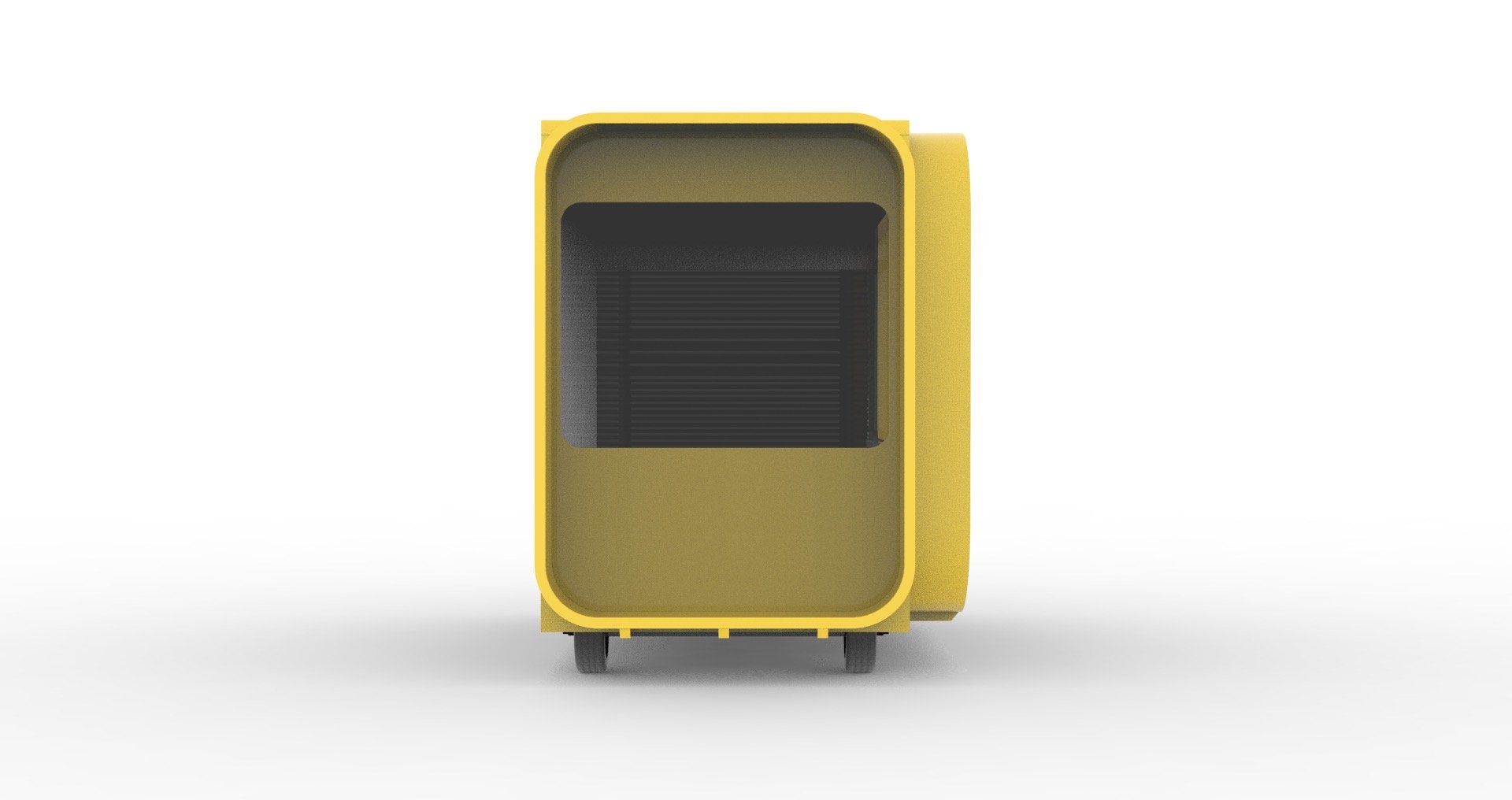

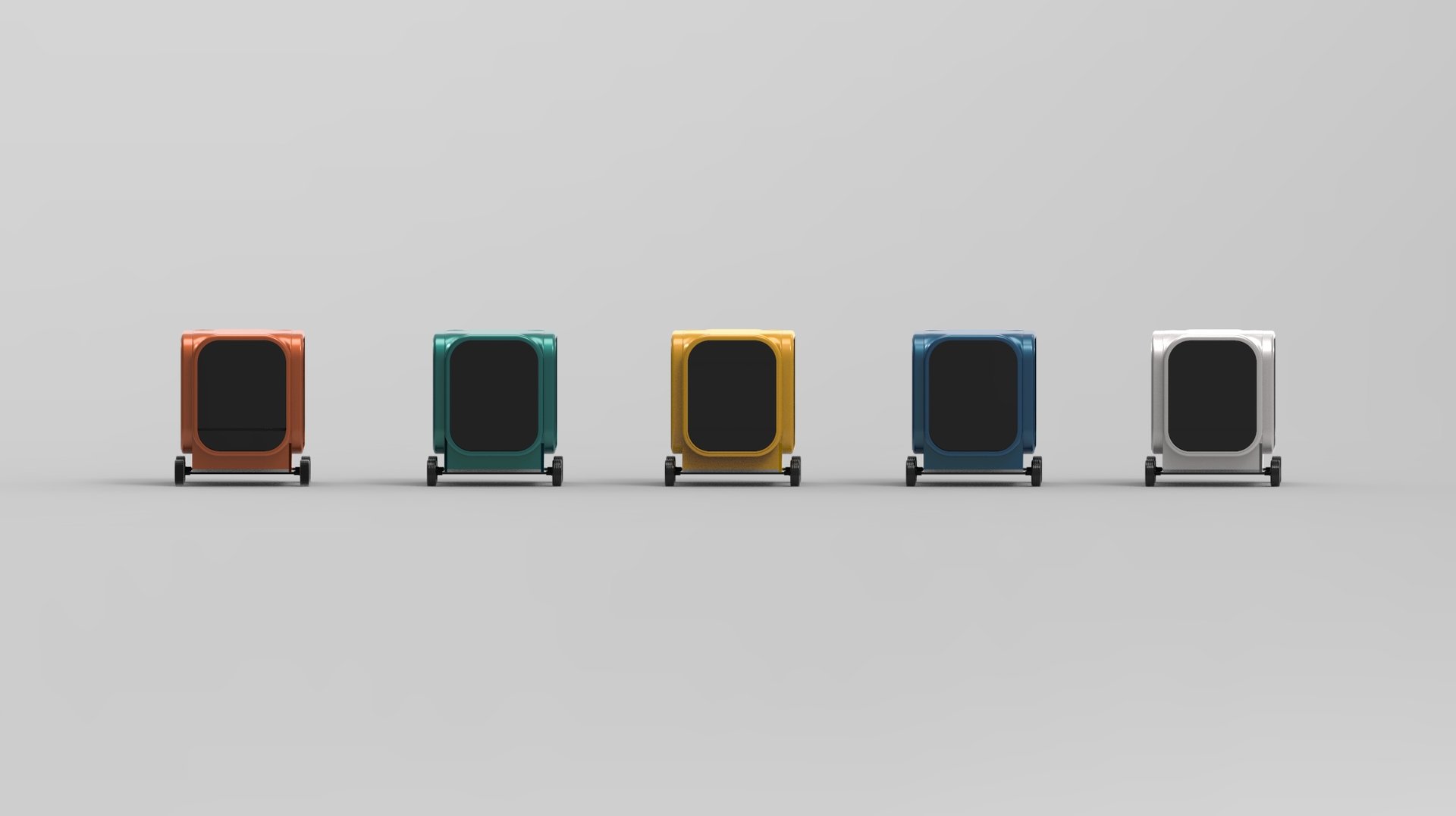

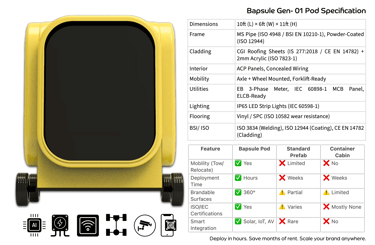

Gen-01 is one engineered chassis behind fifteen BAPSULE pod products. Coffee bar, pharmacy point, bakery or courier hub — built in the factory and delivered ready to trade.
- MS tubular welded chassis
- Colour-coated steel cladding
- Forklift-relocatable when demand moves
- 72-hour install target
A charger becomes a complete outlet.
The same chassis carries docks, canopy, lighting and an operator cabin, so a charging point can open as a full outlet — branded, lit and ready for customers. Every dock reports to an OCPP 1.6J backend and the BAPSULE App.
Grid / DISCOM
230 V 1-ph · 410 V 3-ph supply.
Electrical panel
MCB · RCD · earthing at the site.
BAPSULE EV dock
AC 3.3–43 kW or DC up to 360 kW.
Vehicle
Type D · Type 2 · CCS2 connectors.
Eight charger families. Three connectors. One protocol.
AC outlets from 3.3 kW to DC fast docks up to 360 kW, with Type D, Type 2 and CCS2 connectors. Start a session by QR, RFID or the BAPSULE App, online or offline.
Personal AC Charger
Portable Type 2 charger for home use, single phase.
View details →
3.3 kW AC Outlet
Type D 15 A socket, OCPP, Wi-Fi / GSM 4G and RFID. Wall or pedestal mount.
View details →
3.3 kW Compact 3-in-1
GSM 4G + Wi-Fi + RFID in one device. 114 × 156 × 89 mm, IP66.
View details →3.3 kW Lite
RFID / Bluetooth, proprietary. No backend required.
View details →
Type 2 AC Dock
3.3 / 7.4 / 11 / 22 / 43 kW, 4 m tethered cable, 3″ TFT from 7.4 kW up.
View details →
DC Fast — Single Gun
Auto power select, 100–750 Vdc, 160 A. 675 × 2012 × 690 mm floor cabinet.
View details →
DC Fast — Dual Gun
60–240 kW and 120–360 kW models, up to 1000 Vdc and 200 A.
View details →
DC Wallbox
Wall mount, 3″ LCD, 623 × 260 × 424 mm.
View details →Twelve stocked configurations, priced.
| MODEL | POWER | TYPE | MOUNT | BEST FOR | PRICE (EX-GST) | |
|---|---|---|---|---|---|---|
| BPX-AC-3.3-W | 3.3 kW | AC · Type D | Wall | Parking | Rs 4,200 | Quote |
| BPX-AC-3.3-G | 3.3 kW | AC · Type D | Wall | Sites without Wi-Fi | Rs 4,800 | Quote |
| BPX-AC-3.3-WG | 3.3 kW | AC · Type D | Wall | Networked sites | Rs 5,500 | Quote |
| BPX-AC-7.4 | 7.4 kW | AC · Type 2 | Wall | Hotels | Rs 15,000 | Quote |
| BPX-AC-11 | 11 kW | AC · Type 2 | Wall | Malls | Rs 25,000 | Quote |
| BPX-AC-22 | 22 kW | AC · Type 2 | Wall | Destinations | Rs 28,000 | Quote |
| BPX-DC-20-W | 20 kW | DC · CCS2 | Wall | Depots | Rs 2.80 L | Quote |
| BPX-DC-30-W | 30 kW | DC · CCS2 | Wall | Depots | Rs 3.20 L | Quote |
| BPX-DC-30-F | 30 kW | DC · CCS2 | Floor | Fuel stations | Rs 3.80 L | Quote |
| BPX-DC-60-F | 60 kW | DC · CCS2 | Floor | Highways | Rs 6.50 L | Quote |
| BPX-DC-80-F | 80 kW | DC · CCS2 | Floor | Highways | Rs 7.80 L | Quote |
| BPX-DC-120-F | 120 kW | DC · CCS2 | Floor | Highways | Rs 9.00 L | Quote |
Prices per unit, exclusive of GST (5% extra). Indicative; only a written quotation is binding. Other capacities (43 kW AC; 180 / 240 / 360 kW DC) on request.
The operational ecosystem behind every dock.
Smart monitoring
Live status of every dock — power, energy, session and faults — over OCPP 1.6J to the operator dashboard and the BAPSULE App.
Safety
Over-current, under/over-voltage, surge, short-circuit, over-temperature, earth leakage and 30 mA ground-fault protection. Emergency stop on DC docks.
Remote management
Start / stop, tariff changes and firmware pushed remotely. Whitelist and offline mode keep sites running without connectivity.
Low maintenance
Natural-cooled enclosures with no fan to service, and IK10 impact-rated cabinets.
Service support
After-sales support and spares through Blacxird Industries, Chennai.
Data & analytics
Per-unit energy metering, session history and utilisation reports for operators, franchise partners and investors.

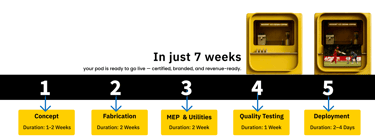

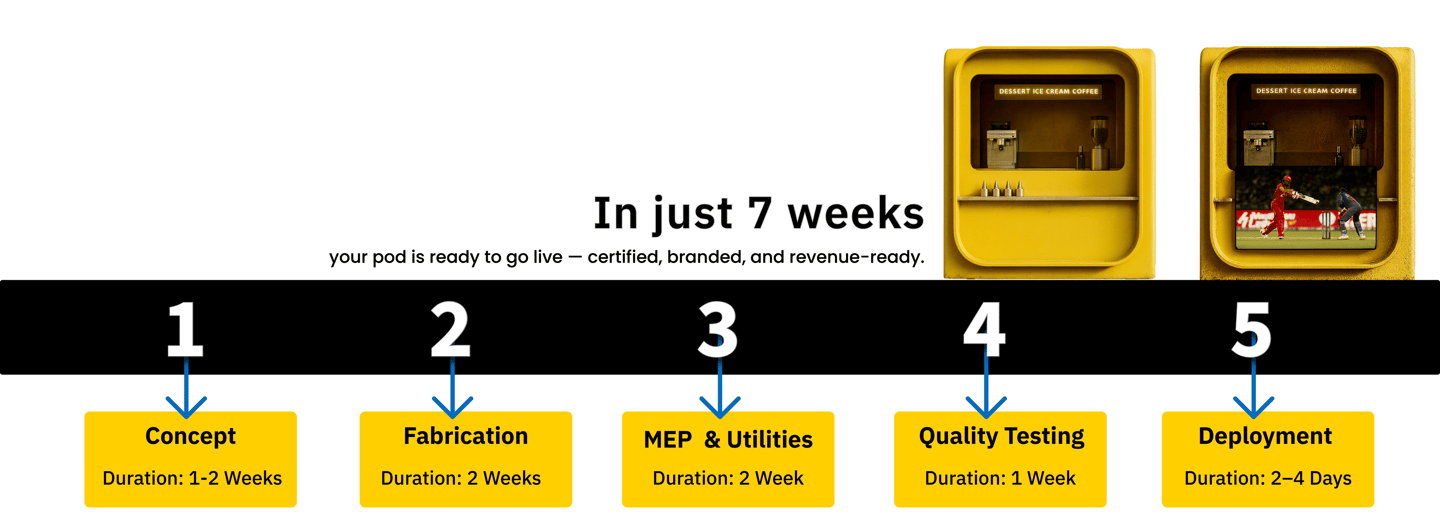

From selection to service in six steps.
Solar-ready canopies, bollard-protected docks and underground cable routing — we handle the survey, load study, installation and commissioning.
Operator-owned
Buy the docks and pod outright and keep 100% of the charging revenue. Suited to fuel stations, hotels and fleets with existing footfall.
BAPSULE-as-a-Service
Low or zero upfront cost: docks and pod supplied on a monthly fee or revenue share, for property owners who want charging without capex.
Franchise outlet
A complete BAPSULE EV outlet — docks, pod, branding and backend — under a master agreement, with three franchise tiers.
Send us your enquiry.
Tell us a bit about your business and what you're looking for — we'll get back to you with a price quotation.
- Guarantee & warranty on every BAPSULE pod
- Free replacement if any parts arrive damaged
- Price quotation sent on WhatsApp within 3–4 hours
